X-Ray Baggage and Parcel Screening Systems

Multi-energy X-ray inspection for hand luggage, parcels, mail and freight at airport, customs, courthouse and facility entrances. Standard tunnels from countertop units to pallet-size freight scanners, plus custom sizes built on request.

0.0787 mmWire resolution
43 mmSteel penetration
100%Duty cycle
TS-6550 X-ray baggage scanner 3/4 view

Product overview

The TS series covers the full range of X-ray baggage inspection, from a 500 × 300 mm countertop unit for handbags and small parcels up to 1500 × 1800 mm standard models for palletised freight, with custom tunnel sizes built on request — the largest built to date being 1850 × 1550 mm. All models share the same multi-energy imaging engine, so operators moving between sites need to learn only one interface.

Images are displayed with material discrimination: organic materials in orange, inorganic in blue and mixed materials in green. Operators can magnify a region up to 128 times, switch between high and low energy imaging, and recall any of the last 500,000 stored images. Units run a 100% duty cycle with oil-cooled generators rated for continuous operation.

Every system is delivered with test reports and a technical file for procurement review, and can be supplied with OEM or ODM branding for integrators and distributors.

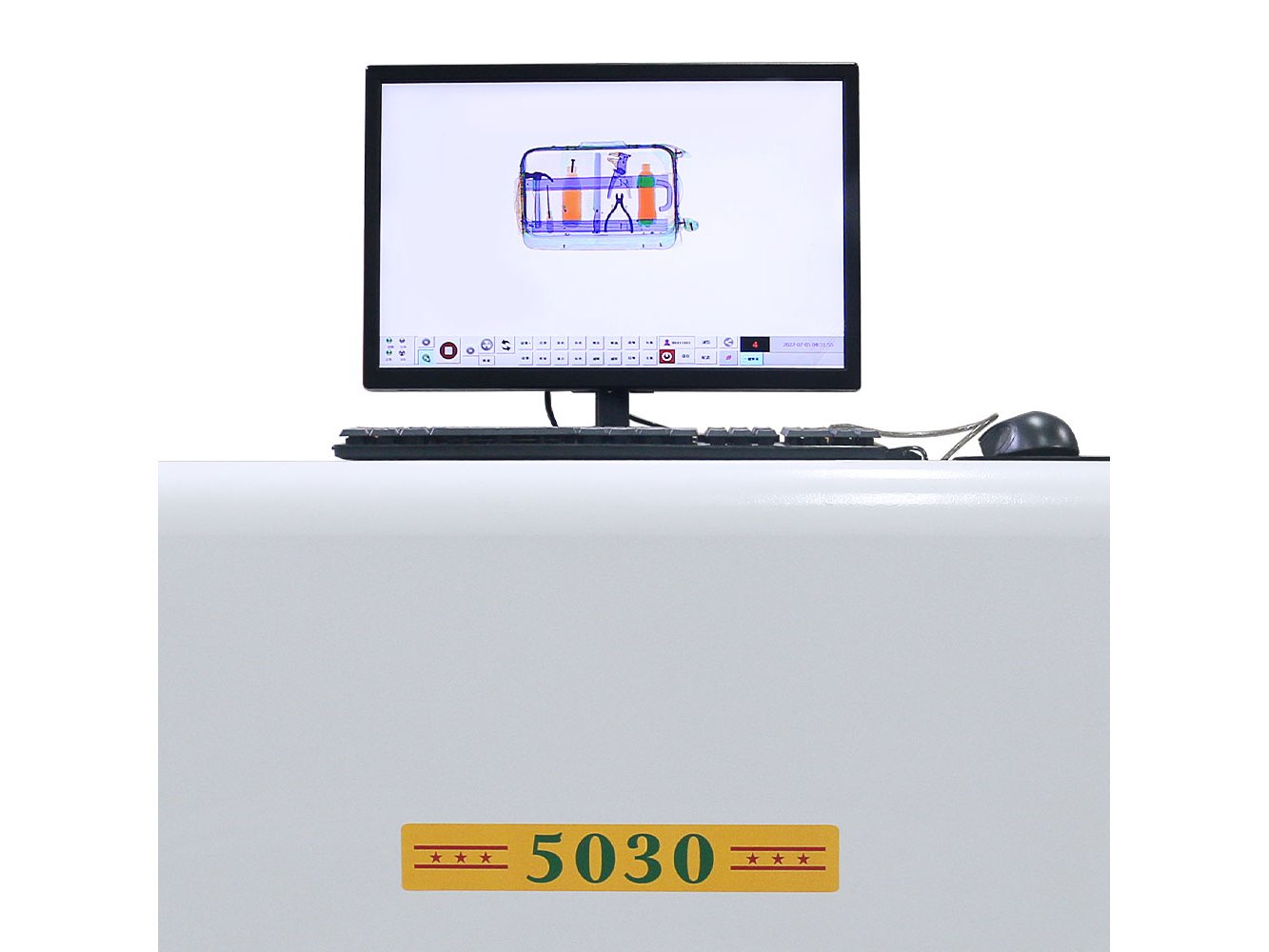

Operator monitor showing scanned bag

Model range

Tunnel dimensions follow the model designation. Tell us your largest item and throughput requirement and we will confirm the right unit on the datasheet.

ModelTunnel (W × H)GeneratorMax loadSteel penetration
TS-5030A500 × 300 mm80–100 kV100 kg8–12 mm
TS-5030C500 × 300 mm140 kV160 kg32 mm
TS-5335530 × 350 mm140 kV180 kg32 mm
TS-6040610 × 410 mm140 kV180 kg32 mm
TS-XIS6040SE600 × 400 mm160 kV180 kg43 mm
TS-6550A650 × 500 mm100 kV180 kg12 mm
TS-6550C650 × 500 mm140 kV200 kg32 mm
TS-6550D650 × 500 mm160 kV200 kg40 mm
TS-7555A750 × 550 mm100 kV180 kg12 mm
TS-7555C750 × 550 mm140 kV180 kg30 mm
TS-8065A800 × 650 mm100 kV180 kg12 mm
TS-8065C800 × 650 mm140 kV180 kg28 mm
TS-8065D800 × 650 mm160 kV200 kg38 mm
TS-10080A1000 × 800 mm100 kV200 kg10 mm
TS-10080C1000 × 800 mm140 kV200 kg28 mm
TS-100100A1000 × 1000 mm100 kV> 200 kg12 mm
TS-100100C1000 × 1000 mm160 kV> 200 kg28 mm
TS-100100D1000 × 1000 mm160 kV> 200 kg38 mm
TS-1501501500 × 1500 mm180 kV1900 kg32 mm
TS-150150D1500 × 1500 mm180 kV> 2100 kg38 mm
TS-1501801500 × 1800 mm180 kV2000 kg38 mm
TS-150180D1500 × 1800 mm180 kV2000 kg38 mm
D variants add a second X-ray source for dual-view imaging. Higher-penetration generator options are available on request. Custom tunnel sizes are also built to order — the largest built to date is 1850 × 1550 mm. The datasheet confirms the final configuration before ordering.

Key specifications

Reference configuration: TS-6550. Specifications for other tunnel sizes differ; request the datasheet for the model you need.

System
Tunnel size650 (W) × 500 (H) mm
Overall dimensions2040 (L) × 920 (W) × 1300 (H) mm
Conveyor speed0.22 m/s
Conveyor max load180 kg
Resolution0.0787 mm diameter metal wire
Detection sensitivity0.202 mm diameter single copper wire
Penetration43 mm steel plate
Film safetyGuaranteed safe for ISO 1600 film
Imaging
X-ray generatorSpellman, USA
Anode voltage100 – 160 kV
Anode current0.4 – 1.2 mA
Beam direction / angleDownward / 80 degrees
SensorHamamatsu L-shaped photodiode array, multi-energetic
Image resolution1024 × 768
Material discriminationOrganic orange, inorganic blue, mixed green
ZoomUp to 128× (eagle-eye function)
Image storageReal-time storage for 500,000 images
Safety and environment
Radiation leakage< 0.33 µGy/h
Cooling / duty cycleOil cooling / 100%
Noise< 57 dB
Storage temperature-20°C to 60°C, 20% – 95% non-condensing
Operating power220 V AC (±10%) 50±3 Hz
Power consumption0.6 kW
Overall weight450 kg

What the system gives your operators

Material discriminationOrganic, inorganic and mixed materials colour-coded in a single view.
Eagle-eye zoom128× magnification on specific regions for detailed review.
High and low energySwitch imaging modes without re-scanning the item.
Image retrievalReal-time storage and recall of up to 500,000 images.
Sound and light alarmAudible and visual alerts assist in detecting drugs and explosive powder.
Fault self-diagnosisAutomatic fault detection with on-screen prompt information.
One-key shutdownA single key turn powers the unit down safely.
Protected tunnelInternal treatment resists spillage from liquids in passengers' bags.

Applications

Airports and transit

Hand luggage and staff screening at terminal and staff entrances.

Customs and border

Parcel, mail and cargo inspection at controlled crossings.

Courthouses and government

Bag screening at public building entrances.

Logistics and mailrooms

Parcel and freight inspection in sorting and delivery centres.

Documentation: systems ship with test reports, an operator manual and a technical file suitable for procurement review. We supply OEM and ODM configurations for integrators and distributors.

Frequently asked questions

What is the difference between single-view and dual-view models?

Single-view models produce one image per scan. Dual-view models (the D variants) use two generator and detector sets at different angles, producing two images in a single pass so operators can judge object depth. Dual-view costs more but reduces the need to re-scan an item.

How large an item can the scanner handle?

Standard tunnel sizes run from 500 × 300 mm to 1500 × 1800 mm, and custom tunnel sizes are built on request — the largest custom tunnel built to date is 1850 × 1550 mm. Size the tunnel from the largest object you expect plus clearance, and confirm the conveyor load rating against the weight of a typical loaded tray.

Is the equipment safe for camera film and electronic media?

The TS-6550 reference configuration is guaranteed safe for ISO 1600 film. Tell us if you screen photographic film or magnetic media and we will confirm the applicable model limits.

Does it need a dedicated operator room?

No. The unit is freestanding and is normally placed with the monitor at the discharge end. A remote viewing position is possible if you prefer to separate the operator from the checkpoint.

What do you need from us to quote?

The country of installation, the largest item size, the expected items per hour, and whether you need dual-view imaging. From that we recommend a model and send the datasheet with pricing.
