A transmission X-ray screening system for controlled entry points: a complete image in under seven seconds at no more than 0.25 µSv per inspection, detecting both metallic and non-metallic contraband that a metal detector cannot see. Deployed in correctional, customs and law-enforcement facilities for over ten years.
For the gap a metal detector cannot close.

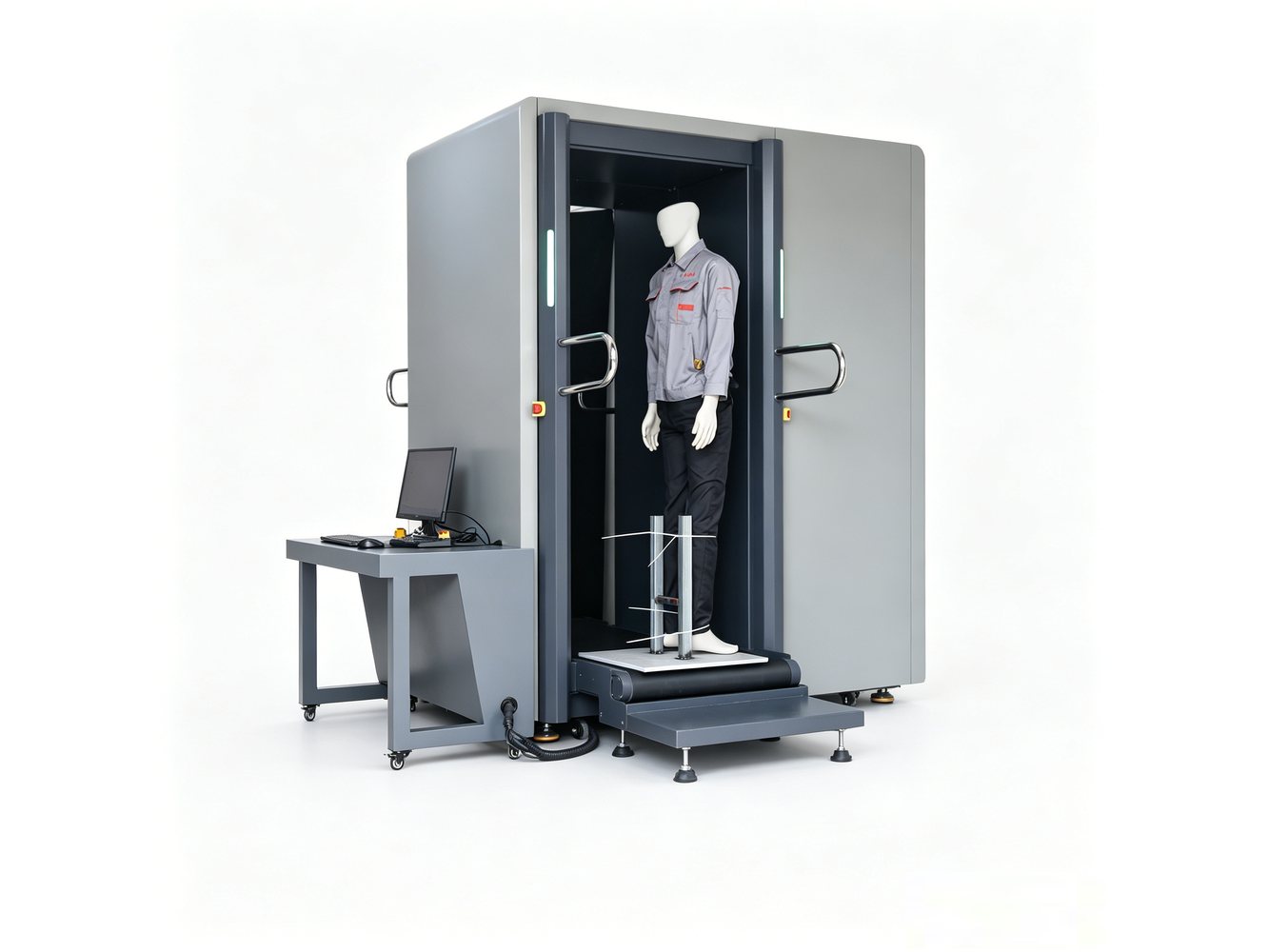

The TS-F20090 is built for one specific gap in a screening procedure. A walk-through metal detector finds metal; it cannot find a ceramic blade, a plastic weapon, a wrapped package, a mobile phone or a SIM card concealed under clothing or internally. A single pass through this system produces a complete head-to-toe image in under seven seconds at a dose of no more than 0.25 µSv per inspection, measured at tunnel centre.
The physical format matters as much as the detection. It is an open tunnel rather than an enclosed cabinet, so people keep moving through the checkpoint instead of queueing for a booth, and it is designed to sit in line with the existing entry flow. Generator voltage is 60–140 kV from a hermetically sealed oil bath with closed-circuit oil cooling, supporting a 100% duty cycle with real-time radiation monitoring built in.
The system has been independently tested against ANSI/HPS N43.17-2009, the American National Standard for radiation safety of personnel security screening systems, and the unit ships with the test documentation needed for procurement review and regulatory submission. It is supplied for institutional and law-enforcement screening only.
Operational, imaging, physical and site data as supplied for procurement and site planning.
| Physical format | Open tunnel, in line with checkpoint flow |
|---|---|
| Scan method | Person conveyed through the beam |
| Scan time | Under 7 seconds |
| Belt speed | Approx. 0.16 m/s |
| Conveyor load capacity | > 220 kg (485 lb) |
| Start-up time | Under 2 minutes |
| Alarm resolution | Single image review |
| Scan format | Fan-beam line scan |
|---|---|
| Generator voltage | 60 – 140 kV cp, hermetically sealed oil bath |
| Generator cooling | Oil-cooled, closed circuit |
| X-ray converter | High-resolution semiconductor detector lines |
| Dose per inspection | ≤ 0.25 µSv (< 0.25 mRem), measured at tunnel centre |
| Duty cycle | 100% |
| Image evaluation | Zoom, multiple enhancement and filter functions, 65,536 grey-level storage |
| Image display | Black-and-white post-scan still full-body image on a high-resolution colour TFT monitor |
| Wire detectability | Standard 32 AWG (0.20 mm), typical 34 AWG (0.16 mm) |
| Tunnel size | 200 cm (H) × 90 cm (W) |
|---|---|
| Dimensions (L × H × W) | Approx. 2760 × 2530 × 1960 mm |
| Weight | 880 kg |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | −20 °C to 60 °C |
| Humidity | 10% to 90%, non-condensing |
| Power supply | 230 V AC / 120 V AC, +10% / −15%, 50/60 Hz |
| Power consumption | Under 0.9 kVA |
| Sound pressure | Under 70 dB(A) |
Both internally concealed items and items concealed under clothing or within artificial limbs.
Institutional and law-enforcement screening of controlled entry points.
The visitor door, where internally concealed contraband and non-metallic items are the risk.
The full product page, including intended-use documentation and site requirements.
How this system integrates with X-ray, metal detection and vehicle inspection at the same site.
Undercarriage inspection for the vehicle route into the same secure compound.
A metal detector detects metal. This system produces an image of both metallic and non-metallic items in a single pass, which is what allows it to find ceramics, plastics, powders, electronics and internally concealed contraband. In practice the two work together: the metal detector handles general flow and this system sits at the entry point where the risk requires imaging.
No more than 0.25 µSv per inspection, measured at tunnel centre, with a 100% duty cycle and real-time radiation monitoring built in. The system is independently tested against ANSI/HPS N43.17-2009 and ships with its test documentation so your regulator's questions are answered from the technical file.
A complete head-to-toe image is produced in under seven seconds, with an open tunnel format that allows continuous flow rather than booth queueing. Start-up from cold takes under two minutes. Practical throughput is set by your secondary-check procedure; send us your peak volume and staffing model and we will tell you whether one unit is enough.
A black-and-white post-scan still full-body image on a high-resolution colour TFT monitor, with zoom and multiple enhancement and filter functions and 65,536 grey-level storage. Procedures for who reviews images and how they are retained are set by the facility and by applicable law.
The system weighs 880 kg, measures approximately 2760 × 2530 × 1960 mm, needs a 230 V or 120 V supply at under 0.9 kVA and an operating temperature between 0 °C and 40 °C. Send a floor plan and we will mark the footprint, the approach and the operator position.
The country of installation, the entry points to be covered, your peak screening volume and your staffing model, plus the space available at each entrance. We reply with a configuration, the documentation list and pricing, normally within one business day.
