Full-body security screening
Non-intrusive transmission X-ray screening for controlled entry points. One pass, head to toe, under seven seconds — detecting contraband concealed internally and externally.
A transmission X-ray screening system built for high-security entry points.

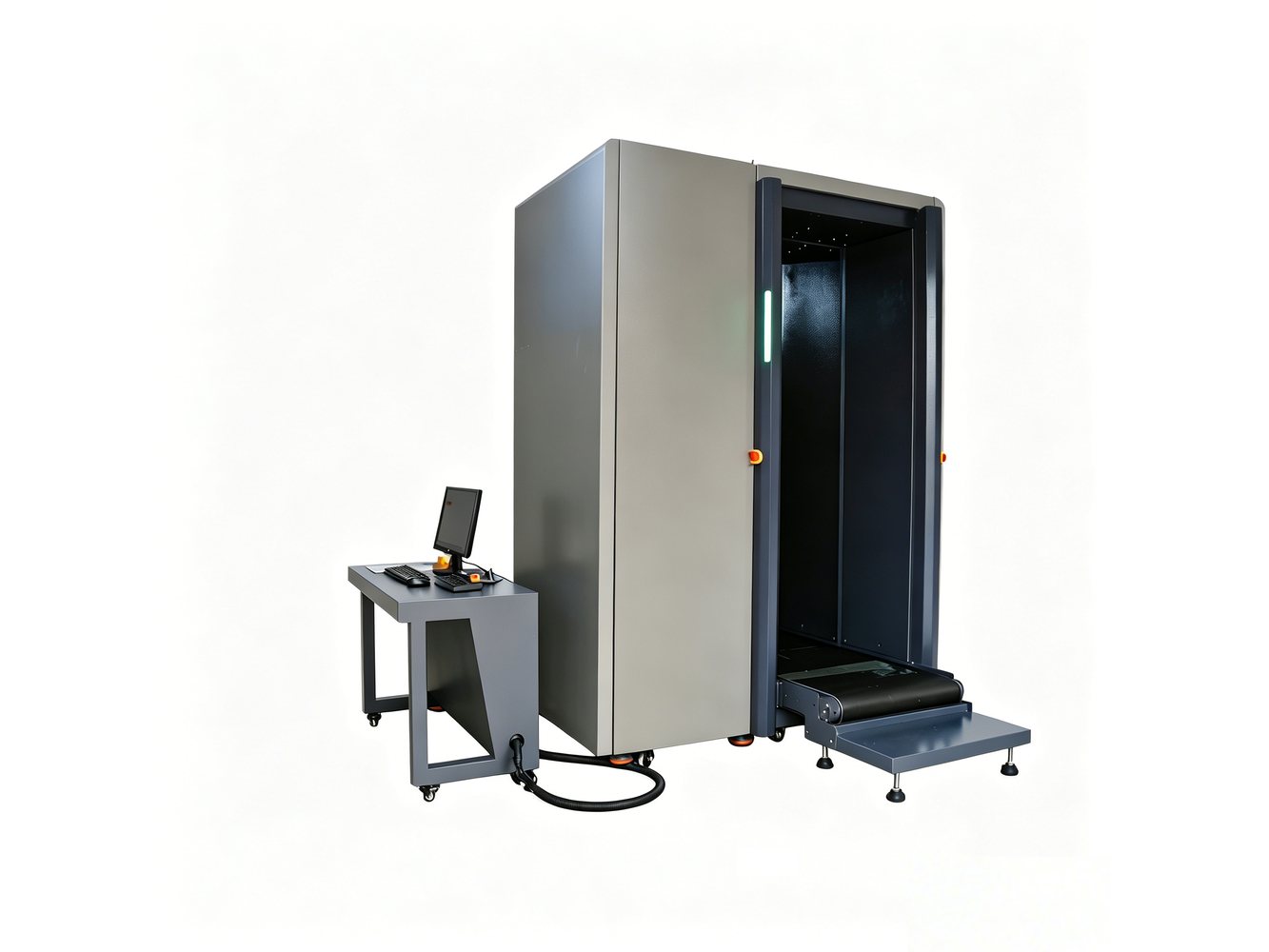

The TS-F20090 is a transmission X-ray full-body screening system designed for non-intrusive inspection of people passing through a controlled entry point. A single pass produces a complete head-to-toe image in under seven seconds, at a dose of no more than 0.25 µSv per inspection.
Unlike walk-through metal detectors, it detects both metallic and non-metallic threats — ceramics, plastics, powders, narcotics, electronics and mobile phones — concealed under clothing, within artificial limbs, or inside body cavities.
The system has been independently tested against ANSI/HPS N43.17-2009 and has been deployed in high-security environments for over ten years. The open tunnel format allows continuous checkpoint flow without the queueing that enclosed cabinets create.
An oil-cooled, hermetically sealed generator supports a 100% duty cycle, with real-time radiation monitoring built in to keep dose compliance under continuous verification.
Full technical data for procurement and site planning.
| Physical format | Open tunnel, in line with checkpoint flow |
|---|---|
| Scan method | Person conveyed through the beam |
| Scan time | Under 7 seconds |
| Belt speed | Approx. 0.16 m/s |
| Conveyor load capacity | > 220 kg (485 lb) |
| Start-up time | Under 2 minutes |
| Alarm resolution | Single image review |
| Scan format | Fan-beam line scan |
|---|---|
| Generator voltage | 60–140 kV cp, hermetically sealed oil bath |
| Generator cooling | Oil-cooled, closed circuit |
| X-ray converter | High-resolution semiconductor detector lines |
| Dose per inspection | ≤ 0.25 µSv (< 0.25 mRem), measured at tunnel centre |
| Duty cycle | 100% |
| Image evaluation | Zoom, multiple enhancement and filter functions, 65,536 grey-level storage |
| Tunnel size | 200 cm (H) × 90 cm (W) |
|---|---|
| Dimensions (L×H×W) | Approx. 2760 × 2530 × 1960 mm |
| Weight | 880 kg |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | −20 °C to 60 °C |
|---|---|
| Humidity | 10% – 90% (non-condensing) |
| Power supply | 230 VAC / 120 VAC +10% / −15%, 50/60 Hz |
| Power consumption | Under 0.9 kVA |
| Sound pressure | Under 70 dB(A) |
Both internally concealed items in body cavities and externally concealed items under clothing or within artificial limbs.
Deployed where contraband risk is high and entry flow cannot be interrupted.
Screening of people entering and moving within secure custody areas.
Detection of internally concealed contraband at controlled crossings.
High-throughput personnel screening at checkpoint entries.
Courthouses, secure government facilities and critical infrastructure.
The TS-F20090 has been independently tested against ANSI/HPS N43.17-2009, the American National Standard for radiation safety of personnel security screening systems.
Integrated safety systems provide real-time radiation monitoring to keep dose exposure within the tested limits and protect both operators and screened subjects.
No. The TS-F20090 is not a medical device. It carries no medical device certification and requires no FDA clearance. It is a security screening system, tested to ANSI/HPS N43.17-2009, intended for institutional security screening only — not for medical or private-sector use.
Under 7 seconds per person. The open tunnel design allows continuous checkpoint flow without queueing.
No more than 0.25 µSv measured at the tunnel centre, with a 100% duty cycle and real-time radiation monitoring built in.
Yes. Transmission X-ray imaging detects both internally concealed items in body cavities and externally concealed items under clothing or within artificial limbs.
Approximately 2760 × 2530 × 1960 mm of floor space, a power supply of 230 VAC or 120 VAC drawing under 0.9 kVA, and an operating temperature between 0 and 40 °C.
Scan and image management system, stand-alone or networked operation with central data and image storage, integration with a customer database, ergonomic operator workstation, side wall options for shielding and visibility, image store and load for offline review, programmable function keys, and a remote operator privacy solution for off-site image assessment.
